Description

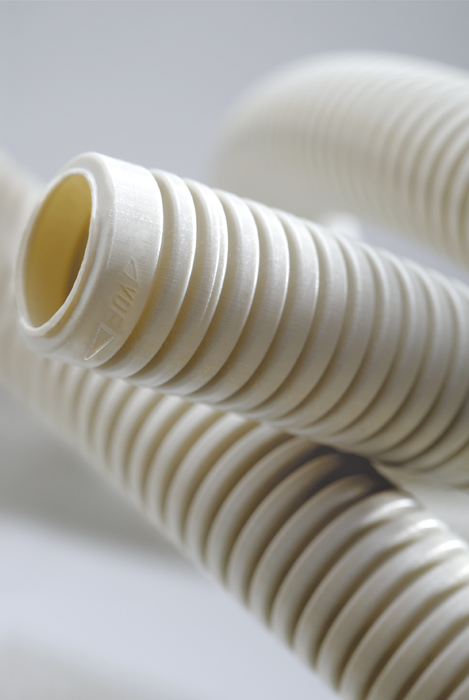

The pliable corrugated conduit COSMOFLEX® MEDIUM is the ideal solution for external electrical installation, underground networks, and industrial sites as well as within pressurized concrete.
It assembles perfectly with the COSMOTUBE® accessories (couplings, push-fit elbows, T-joints, elbows, 90o bends, snap conduit supports, omega clips) the COSMOTUBE® MEDIUM straight conduit and with the weatherproof boxes, switches and sockets into the ideal Electrical Installation Conduit System with sealing ability IP 65.
COSMOFLEX® MEDIUM is produced in light grey RAL 7035 from specially stabilized U-PVC, self-extinguishing, highly resistant to flame, corrosion and the Ultra Violet (UV) radiation. This corrugated conduit is very flexible while maintaining its original diameter.
The specially designed internal spirals ensure minimal friction to the electrical wires and thus significantly reducing the installation time. The classification code according to EN 61386.22 is 3341; corresponding in resistance to compression force of >750N, impact strength of >2Joule for installations at temperatures -25oC up to +60oC.
Codes
Specs
| Description | PLIABLE CORRUGATED CONDUIT |
| Material Type | MEDIUM TYPE |
| Use | EXTERNAL INSTALLATIONS |
| Family | COSMOFLEX |
| Colour | RAL 7035 |
| Construction Material | U-PVC |
| Type of facility | ELECTRICAL INSTALLATIONS |
| Temperature resistance | -25°C - +60°C |
| UV Protection | YES |
| Resistance to bending | YES |
| Resistance to compression force | >750 |
| Resistance to strength | 2 joules |
| Sealing ability IP | IP 65 |
| Resistance to flame | YES |
